Tri Wave Class IV Laser


(No reviews yet) Write a Review

The choice of veterinary professionals, the powerfully effective Tri-Wave laser combines three pulsed wavelengths to rapidly stimulate tissue regeneration while reducing pain and inflammation.

  • High intensity laser with 980nm, 810nm and 660nm diodes
  • Multiple treatment protocols in continuous or super-pulsed mode
  • Combined 20W power for 980nm and 810nm, plus 100mW at 660nm
  • May be configured to work as a Class 3b laser instead of Class 4
  • Time-depth ratio control allows precisely targeted treatments
  • Red light aiming beam enables accurate definition of treatment area
  • Unparalleled, super-pulsed treatment for safe results in minutes
  • 10” true color touch screen with automatic protocols for easy operation

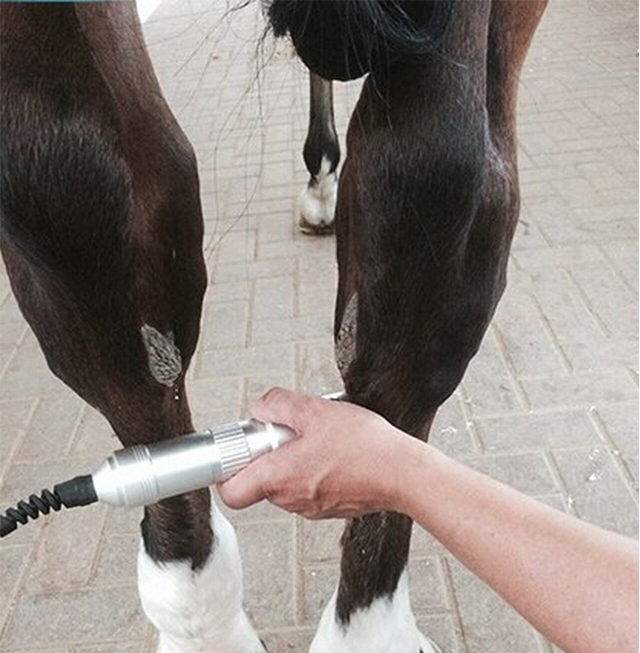

As one of the fastest, most powerful laser treatments available, Tri-Wave is used by veterinarians and rehab specialists to accelerate the resolution of musculoskeletal conditions in horses.

Clinical improvements and recovery times from sports injuries are considerably reduced, with equine athletes returning to training and competitive fitness faster.

Shipping:Free shipping within the US.


We now offer new 3 wave class 4 laser for horses, combing the healing effect of the 980, 810 and 660 wave length. It is  a non-surgical, drug free treatment option for horse’s pain. Deep tissue laser therapy has the power to eliminate or significantly reduce horse’s pain. Treatments take just a few minutes, however, the therapeutic effect continues to soothe and heal long after treatment. There is no discomfort during treatment, simply a deep, gentle warmth as horse body’s cells respond to the light.




  •     Relieves acute and chronic pain
  •     Increases the speed, quality and tensile strength of tissue repair
  •     Increases blood supply
  •     Stimulates the immune system
  •     Stimulates nerve function
  •     Develops collagen and muscle tissue
  •     Helps generate new and healthy cells and tissue
  •     Promotes faster wound healing
  •     Reduces inflammation



Laser therapy can be used for the following:

1. Pain Management

2. Wound healing

3. Post surgical Healing

4. Rehabilitation

5. Nerve Regeneration

6. Inflammatory Diseases

7. Acute Musculoskeletal Trauma



Laser type

GaAs diode laser

Laser wavelength

980nm /  810nm / 660nm

Laser mode

CW/Single Repeat Pulse

Output power

0.1- 10W (980nm) / 0.1- 10W (810nm) / 10- 100mW (660nm)

Divergence angle

≤ 25 mrad

Power instability

≤ ± 10%

Aiming beam

656nm red diode laser, 5mW.

Delivery system

 Support the fiber with diameter of 200μm, 400μm, 600μm,800μm fibers.

Standard configuration

400um fiber treatment handpiece (disposable fiber head), beam expand raying

 head for whitening.

Operation and control

Color touch screen, microcomputer control.


10" resistance-type true color touch

Operation mode

Continuous output, repeated pulse output

T on

25μs ~ 1000ms

T off

25μs ~ 1000ms


 20,000 Hz

Cooling system

TEC semiconductor cooling, heat pipe air cooling



Main body input voltage

DC 12V~17V

Input power

AC110V ~ 220V ± 20% 50Hz ~ 60Hz ± 1Hz

Battery input voltage

DC 18V~19.5V

Ambient temperature


Relative humidity

No more than 80%




Net weight





















Sold for animal use only. Results may vary. The equine laser is a class IV therapeutic laser with power up to 21 watts.. Note: Before using or buying any therapy equipment for your animal, or administering any treatment, you should consult with a licensed veterinarian first. Even though thousands of clinical applications using low level lasers have been favorable, no claims can be made on its health benefits or anticipated outcome of treatment. When you buy any laser from this site or from the owner of this site (using PayPal, Google checkout, by phone, mail or any other means) you agree to never use these lasers in public. The buyer assumes full responsibility for their actions in the use of the lasers sold here. State and or Federal Laws may apply when using lasers. It is up to the buyer of any laser sold here to comply with these laws. For Veterinary Use Only. Federal Law prohibits the distribution of this device for human use. Not sold where prohibited.

Please Read Before Buying The equine  Class IV Laser.

The purchaser and/or user of any and all of the lasers and other products sold on this site are fully responsible for their actions in the use, in any way, of the laser and products.  The purchaser and/or user of any and all of these lasers and other products on this site, understands and agrees to these terms before they buy, or, in any way, use these products for any reason whatsoever.  The buyer of these products understands and agrees that the lasers sold here are sold for and intended for animal use only.

Attention:  User of the class IV laser product sold here on this site shall purchase the ANSI Z136.1 laser safety standard form from and implement the required safeguards and training of ANSI Z136.1 before using this Class IV laser product.



I have been using the TRI-WAVE laser on different types of pathologies that are difficult to treat. Most are related to subchronic and chronic issues like adhesions on old suspensory proximal or distal desmitis, sometimes with scar tissue. The Tri-Wave has been remarkable for such cases, clinical improvements have been seen within 4 to 6 weeks in the majority of the cases.


How it Works

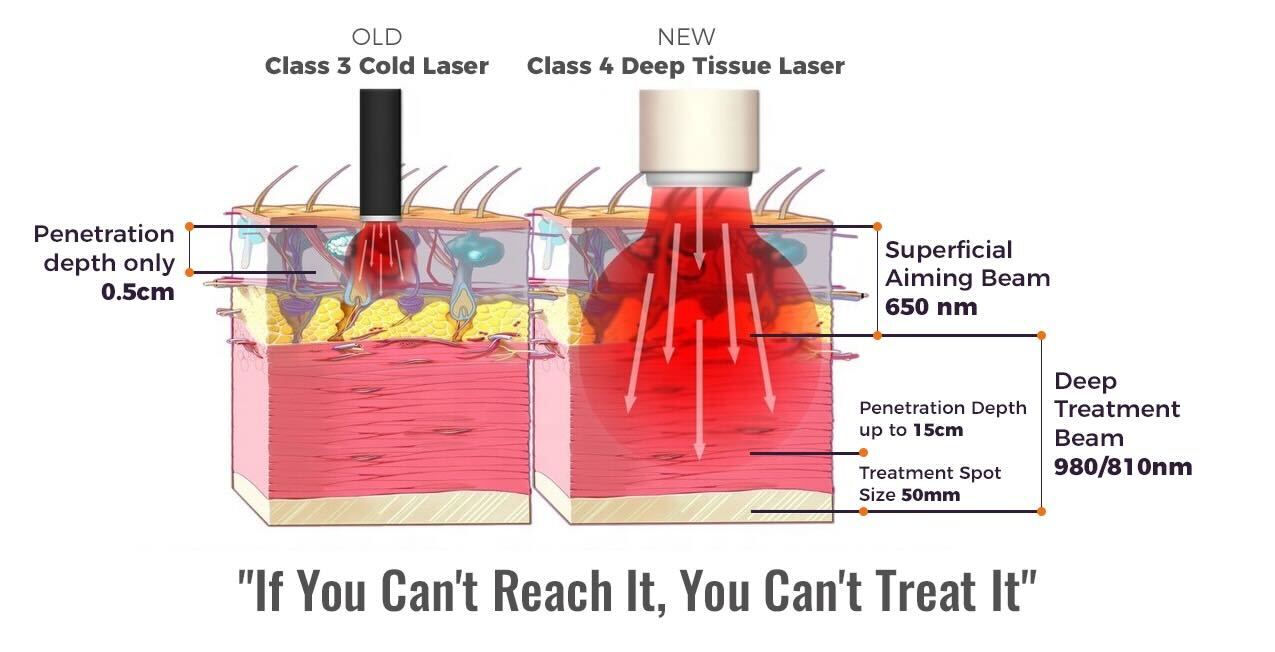

The Tri-Wave laser device uses diodes to emit infrared laser beams in either continuous or pulsed phases. Continuous mode enables a gentler treatment of more superficial conditions, such as tendon and ligament injuries. Super-pulsed mode enables intensive treatment, with the intervals adding safety by preventing heat generation. The beams are carried via a fiber optic cable to the treatment wand, which is aimed over the skin using the red light aiming beam. As treatment is delivered, infrared light penetrates the tissue, at the correct dosage, depth and duration. The light energy causes biochemical changes to occur at cellular level, stimulating cell proliferation leading to wound repair. Free nerve endings are also stimulated, blocking pain pathways and bringing rapid pain relief to the horse.

4 Principle Effects

As laser stimulates profound change at a deep cellular level, its many beneficial effects are highly interrelated.

Tissue healing:Heightened fibroblast development and cellular reproduction induces faster healing in tendons, ligaments, nerves and muscles, with less scar tissue produced.

Anti-Inflammatory:Reduction of localized swelling and blocking of pro-inflammatory molecules, benefiting injuries and joint conditions.

Muscular:Relief of spasm and pain occurs, with improved vascular activity benefiting lymph and blood circulation, and healing of exercise-induced microtears.

Analgesic:Effects on the epidermal and subcutaneous neural network lead to reduction of acute and chronic pain, and improved nerve function.

Really powerful results! For me, it was a no-brainer.

Technical Specifications

  • GaAs diode laser with deep penetrating 980nm and 810nm diodes
  • Maximum 20W power for benefit in minutes with 980nm and 810nm diodes
  • 660nm diode at 0.1W for superficial/derm treatment
  • Super-pulsed output enables rapid treatment without heating
  • Fiber handpiece with 0.4mm spot size for focused treatment
  • Operates within 5-40 and less 80% humidity range
  • Main body input voltage DC 12V~17V, Power input AC110V ~ 220V ± 20%
  • Screen powered with Li-battery 4700mAh (2-hr working, 8-hr standby)
  • Dimensions 235 × 278 × 325mm, weighing 6.5 kg
  • 10” color touchscreen for microcomputer control


  • Superior device for the veterinary clinic, equine rehab or training center
  • Instantly available, rapid treatment reduces downtime in sport horses
  • Deeper, long-lasting rehabilitation from traumatic sports injuries
  • Improves career longevity by addressing distal limb stress injuries
  • Approved by veterinarians, professional riders, and equine physical therapists

650nm wavelength: This wavelength is best used for wound healing and scar tissue regeneration by promoting healing of skin surface tissues. The wavelength is largely absorbed by the melanin in the skin, inhibiting bacteria proliferation and promoting fine cell growth.

810nm wavelength: This wavelength rapidly activates the hemoglobin oxygenation process to transfer energy supplies from blood into muscles and tendons. This promotes tissue regeneration and increases ATP production.

980nm wavelength: This wavelength decreases pain via the analgesic effect by optimizing thermoreceptors and mechanoreceptor interactions with the peripheral nervous system. This activates the gate-control mechanism to produce the analgesia.

For anybody that needs to heal soft tissue fast - this is the only real option out there.

What it Treats

General analgesia
Superficial wounds
Sores and abrasions
Tendon lesions
Ligament lesions
Dorsal metacarpal disease
(sore/bucked shins)
Post-surgery incision repair
Spinal pathologies
Tendon and ligament injury
Soft tissue adhesions
Ligament desmotomy
(Medial patellar, Inferior check)
Muscle strains and microtears
Muscle spasm
Moderates exercise-induced inflammation
Reduced recovery times
OCD lesions (post-surgery)
Spinous process impingement
Developmental orthopedic disorders
Acute laminitis
Colitis-related laminitis prevention
Dermatological Conditions
Hoof disease (canker, thrush)
